GLOTRENDS PA20 Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation, Setup Soft M.2 NVMe RAID via OS Tool (Support 22110/2280 Size)
Product details
| Management number | 209073905 | Release Date | 2026/03/29 | List Price | $31.60 | Model Number | 209073905 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

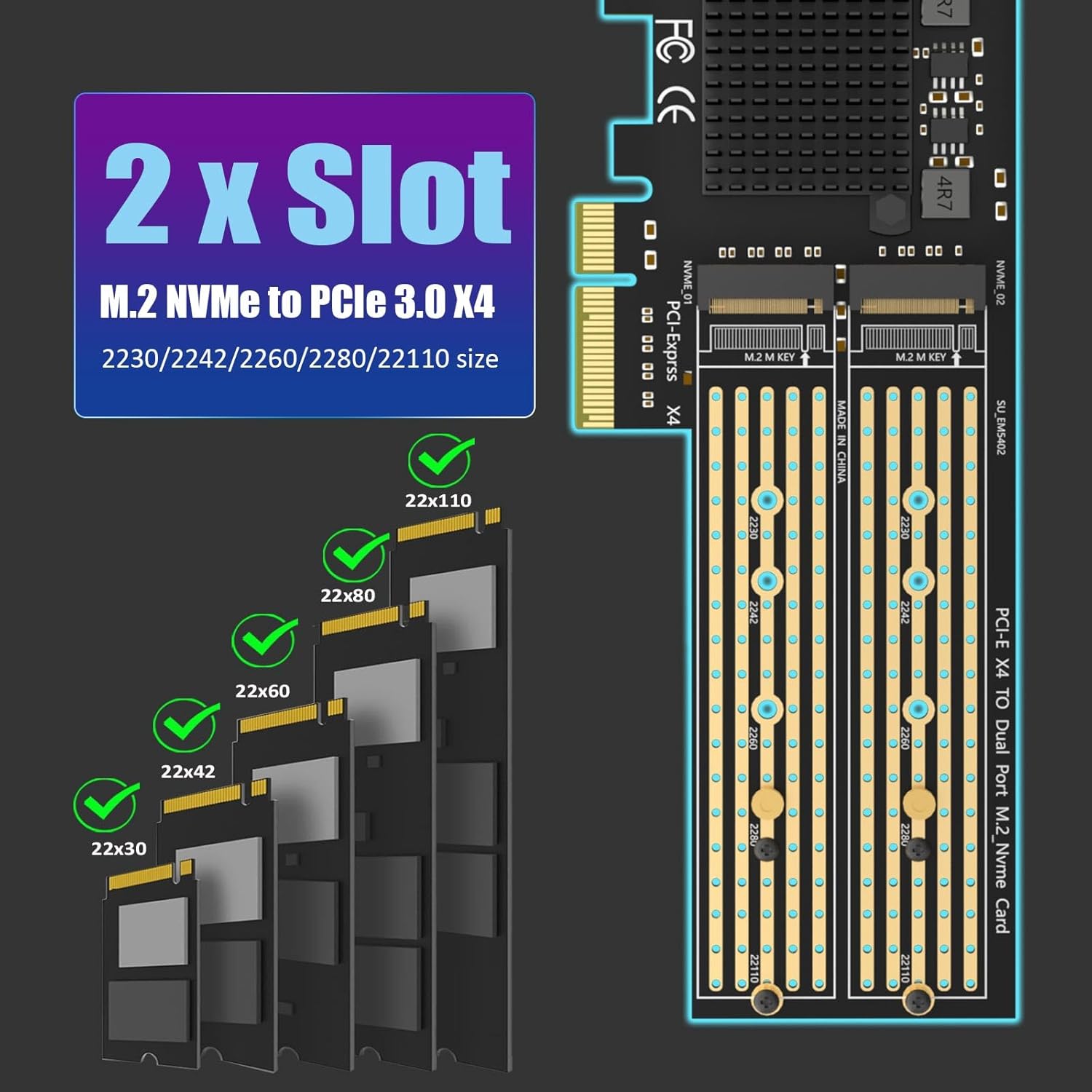

- Dual M.2 NVMe to PCIe 3.0 X4 Adapter: By installing 2 M.2 NVMe SSDs (Support 22110/2280/2260/2242/2230 M.2 NVMe SSD) on this PCIe 3.0 X4 adapter, your computer will be able to access 2 x M.2 NVMe SSDs at the same time (Note: Not support M.2 SATA SSD)
- ASM2812 Chip Built-in PCIe Bifurcation: It can work with all kinds of motherboards (Note: The PCIe slot must be allocated with PCIe X4 lane bandwidth)
- Upstream Bandwidth: 2 x M.2 NVMe SSDs sharing PCIE 3.0 X4 bandwidth (32Gbits/s = 4GB/s max), which means 2 x M.2 NVMe SSDs cannot operate at full speed at the same time.
- Hardware Platform: Support Soft RAID in Intel/AMD platform, not support Mac Pro 5.1 (Note: To set up Intel's RAID-on-CPU (VROC), you need to purchase your license)
- Support OS Booting: Reinstall the OS, and set up BIOS/UEFI boot from this M.2 NVMe SSD (Note: Some motherboards are too old to support OS booting. In this case, M.2 NVMe SSDs can be used as storage disks)
- OS compatibility: Plug-and-play in Windows 11/10/8/Linux/Mac OS (Note: Not support Windows 7). The new M.2 NVMe SSD needs to be initialized and formatted before it can be recognized by the computer host.
- Silent Heatsink ensures this adapter runs for a long time without losing performance.

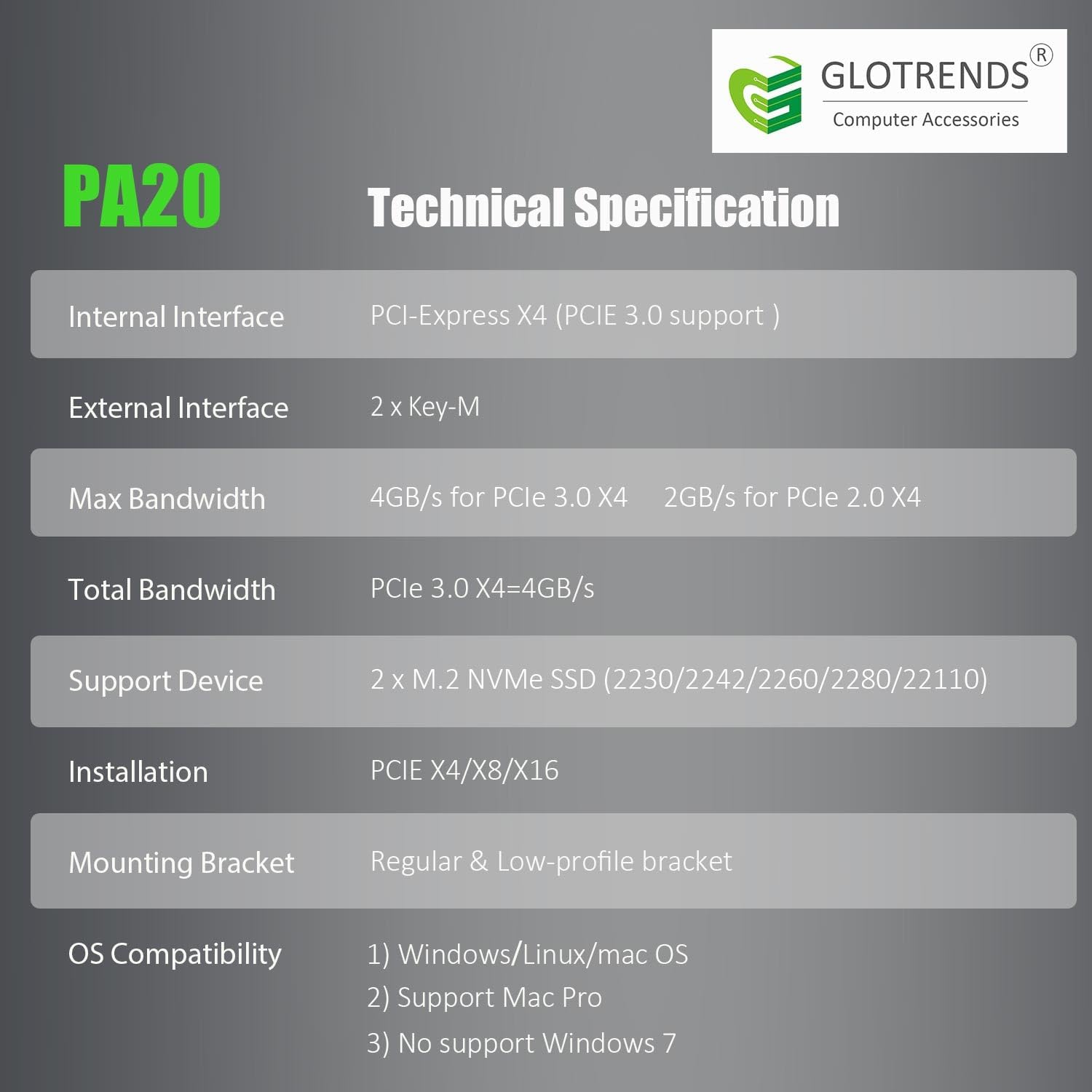

| Brand | GLOTRENDS |
|---|---|
| Style Name | Dual M.2 NVMe to PCIe 3.0 X4 Adapter with PCIe Bifurcation Function |
| Unit Count | 1.0 Count |
| Item Weight | 0.2 Kilograms |
| Manufacturer | glotrends |
| Model Number | PA20 |
| Operating System | Windows/Mac/Linux (Keine Unterstützung für Windows 7) |
| Compatible Devices | PC/Server/Mac Pro (Universal motherboard, does not require motherboard support for PCIE Bifurcation) |
| Hardware Interface | PCI Express x4 |
| Warranty Description | 30 Day Warranty Against Manufacturer Defects |
